1、 The core connotation of vibration reduction pillars

Vibration reduction pillar is a core concept in vibration control engineering, which refers to an engineering technical support component that introduces isolation devices or systems to form obstacles for vibration transmission between the vibration source and the protected object, effectively reducing the transmission rate of vibration energy.

In the fields of modern precision instruments, semiconductor manufacturing, biomedical research, etc., vibration reduction pillars are not only the basic basis for technical selection, but also the key element to ensure equipment accuracy and stability.

The core of vibration reduction pillars lies in the word "isolation". It is not simply eliminating vibration - which is almost impossible to achieve in engineering practice - but controlling the harm of vibration within an acceptable range through scientific means. Understanding the essential characteristic of vibration reduction pillars helps us choose the most suitable technical path and solution when facing different vibration reduction needs.

2、 Passive damping pillar: a classic and reliable damping method

Passive damping strut is the most traditional and widely used implementation form of damping strut. It relies on the elastic deformation and damping characteristics of the damping element itself to absorb and attenuate vibration energy, without the need for external energy drive. Common passive damping pillar components include rubber damping pads, wire rope dampers, air springs, etc. The advantages of passive vibration reduction pillars are simple structure, low cost, high reliability, and almost no need for daily maintenance.

However, passive vibration reduction pillars also have certain limitations. Due to the fact that its damping effect mainly depends on the natural frequency of the component, the effect of passive damping pillars is often not ideal for vibrations with frequencies close to or lower than the natural frequency.

In addition, once the passive damping system is installed, its damping characteristics are basically fixed and cannot be dynamically adjusted according to environmental changes. Therefore, passive vibration reduction pillars are more suitable for application scenarios with relatively stable vibration environments and moderate precision requirements.

3、 Active vibration reduction pillar: high-precision vibration control scheme

The active vibration reduction pillar represents the latest development of vibration reduction pillars in the high-end engineering field. Unlike passive vibration reduction, active vibration reduction systems work together with sensors, controllers, and actuators to sense the vibration state in real time and generate reverse compensation force, thereby achieving active vibration cancellation. This dynamic braking method enables the active damping pillar to maintain excellent damping performance in the low-frequency range, with a transmission rate as low as -35dB or below.

The core advantage of active vibration reduction pillars lies in their adaptive ability. No matter how the external vibration environment changes, the active damping system can maintain the best damping effect by adjusting the compensation force in real time. This makes it particularly suitable for seismic active areas, laboratories near transportation arteries, and high-end manufacturing equipment that requires sub micron precision. Of course, the system complexity and cost of active vibration reduction pillars are correspondingly higher, and a comprehensive balance needs to be made within the technical framework of vibration reduction pillars.

4、 Comparative analysis of active and passive vibration reduction pillars

From the perspective of vibration reduction pillars, active and passive vibration reduction pillars each have their own applicable boundaries. The passive vibration reduction pillar has good vibration reduction effect in the high-frequency range (>10Hz), and the system is simple and reliable; Active vibration reduction pillars demonstrate unparalleled advantages in the low frequency range (1-10 Hz), enabling higher precision vibration control. In practical engineering, the two are not mutually exclusive, but can complement each other to form a hybrid vibration reduction system that covers a wider frequency range.

For example, some of LeadTop's vibration reduction pillar products adopt a hybrid vibration reduction architecture that combines active and passive modes. While inheriting the high reliability of passive vibration reduction, they compensate for the shortcomings of low-frequency vibration reduction through active control modules. This design concept fully embodies the engineering concept of adapting measures to local conditions and needs in vibration reduction pillars, providing users with an ideal choice that balances performance and cost.

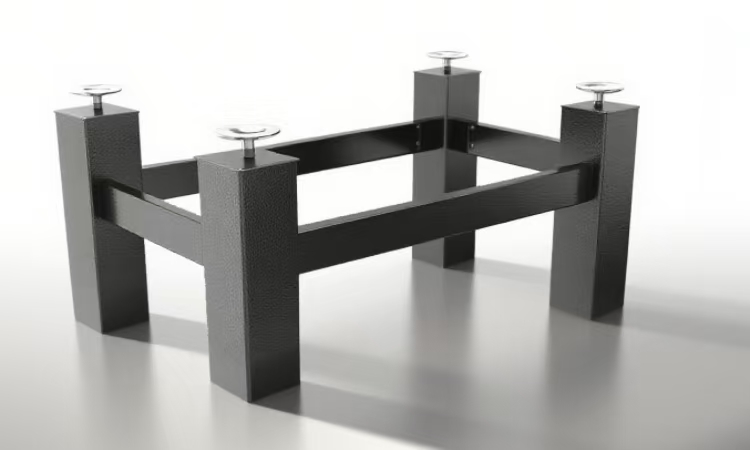

The rigid bracket GZT series has a high load rigid structure, is stable and lightweight, supports manual leveling, and can also be equipped with casters. Can adapt to various types of tables, meet various scenarios such as light target experiments, microscopes, etc. that do not require or have low vibration requirements. The adjustable height in terms of performance can reach ± 10mm, making it an ideal support choice for related instruments and equipment.

5、 Application scenario selection under the guidance of vibration reduction pillars

The understanding and requirements for vibration reduction pillars vary in different application scenarios.

In university teaching and routine optical experiments, passive vibration reduction pillar platforms are usually able to meet the basic needs of vibration reduction pillars;

In ultra precision instruments such as electron microscopes, atomic force microscopes, and laser interferometers, vibration reduction schemes must be designed according to active vibration reduction pillars.

In addition, in high-end manufacturing fields such as semiconductor lithography and nanoimprinting, the standards for vibration reduction pillars are more stringent, often requiring multi-level measures such as building vibration reduction and foundation treatment to achieve a vibration environment that meets process requirements.

6、 Summary: Guided by vibration reduction pillars for precise selection

Vibration reduction pillars provide us with a clear theoretical framework for understanding and selecting vibration reduction technologies. Passive vibration reduction pillars and active vibration reduction pillars are the two main implementation paths for vibration reduction pillars, each with its own advantages and applicable scenarios.

In practical engineering, we should make scientific and reasonable selection decisions based on specific vibration environments, accuracy requirements, and budget conditions, under the guidance of vibration reduction pillars. Only by truly understanding the deep meaning of vibration reduction pillars can we find the most suitable solution for our own needs in the complex range of vibration reduction products, allowing precision instruments to achieve maximum efficiency in the best vibration environment.
