Laboratory vibration isolation control is an indispensable and important part of modern scientific research and testing laboratory construction. With the continuous advancement of science and technology, the resolution and measurement accuracy of various precision instruments are constantly improving, and their sensitivity to environmental vibrations is also increasing.

From nanoscale electron microscopy imaging to sub nanometer level optical interferometry, from single-molecule level biological analysis to micrometer level semiconductor detection, the quality of laboratory vibration isolation control directly determines the reliability of experimental data and the accuracy of detection results.

This article will delve into the specific applications of laboratory vibration isolation control in different precision testing scenarios, analyze the characteristics of vibration isolation requirements and key technical solutions for various scenarios.

1、 Vibration isolation control in electron microscope laboratory

Electron microscopy is one of the most important application areas for laboratory vibration isolation control. The resolution of scanning electron microscopy and transmission electron microscopy reaches the nanometer level, and even small vibrations can cause image blurring and resolution degradation. The impact of low-frequency interference such as building sway and traffic vibration on electron microscopy imaging is particularly severe.

In electron microscopy laboratories, active vibration isolation control is commonly used to eliminate the impact of environmental vibrations through real-time monitoring and active compensation.

The active isolation platform can achieve efficient isolation within a wide frequency range of 1-200Hz, with low-frequency attenuation exceeding 35dB and isolation efficiency exceeding 90%. For large-scale electron microscopy systems, it is also necessary to consider the vibration coupling between platforms and adopt a design scheme of multi-point support and independent vibration isolation.

In addition, the isolation platform of the electron microscope laboratory also needs to have good load-bearing capacity to support the total weight of the electron microscope host, vacuum system, and cooling equipment.

2、 Vibration isolation control in optical experimental laboratory

Optical experiments are another important application area for laboratory vibration isolation control. Optical experiments such as interferometry, holography, and laser communication require extremely high stability of the optical path. Any small vibration can cause interference fringes to shake and the optical path to shift. In optical experimental laboratories, laboratory vibration isolation control requires simultaneous attention to isolation performance and table stability.

The MOT-S series marble optical platform is made of high-quality marble material, which is stress free, stable in shape, has small load deformation, has a black glossy surface, and uniform texture. It has high strength, high hardness, acid and alkali resistance, non magnetization, wear resistance and other characteristics. The coefficient of linear expansion is only 4.61 × 10 ⁻⁶/℃, the water absorption rate is less than 0.13%, and the Shore hardness exceeds 70Hs, providing an extremely stable installation reference for optical components.

For optical experiments with general precision requirements, a passive isolation platform combined with a marble tabletop can meet the needs of laboratory vibration isolation control; For high-precision interferometric measurement, it is necessary to use an active isolation platform in combination with a marble platform.

3、 Vibration isolation control in semiconductor testing laboratory

The requirements for laboratory vibration isolation control in semiconductor manufacturing and testing are extremely demanding. In processes such as chip defect detection, wafer alignment, and focused ion beam processing, vibration can lead to positioning errors and decreased processing accuracy. The vibration isolation control scheme for semiconductor testing laboratories needs to focus on suppressing low-frequency vibrations, as semiconductor testing equipment is most sensitive to low-frequency vibrations ranging from 0.5 to 10 hertz.

Active isolation technology has become the preferred solution for semiconductor testing laboratories due to its wideband and high-efficiency isolation characteristics. In semiconductor testing laboratories, the vibration isolation control of the laboratory also needs to consider electromagnetic compatibility requirements. The material selection and structural design of the isolation platform need to avoid electromagnetic interference to the testing equipment.

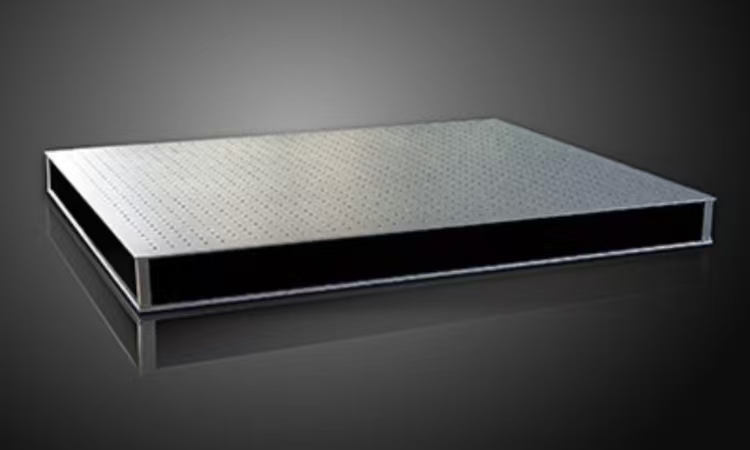

The MOT-W series non-magnetic optical platform is made of non-magnetic 304 stainless steel material, with built-in damping material to suppress resonance. It is suitable for semiconductor testing scenarios with high requirements for non-magnetic environments, ensuring experimental accuracy and stability.

4、 Vibration isolation control in life science laboratories

Precision instruments in the field of life sciences also have strict requirements for laboratory vibration isolation control. Biological imaging and analysis equipment such as confocal microscopy, atomic force microscopy, and optical tweezers systems are highly sensitive to vibrations when observed and operated at the single-molecule level.

The isolation performance of atomic force microscopy directly affects the signal-to-noise ratio and resolution of nanoscale surface morphology measurement. The optical tweezers system uses a laser beam to manipulate microscopic particles, and even small vibrations can affect the accuracy of the experiment. The vibration isolation control scheme in life science laboratories usually adopts active isolation technology to ensure stable experimental data can still be obtained in complex vibration environments.

At the same time, the life science laboratory also needs to consider the size adaptability of the isolation platform to accommodate various equipment such as microscopes, incubators, sample processing devices, etc. LeadTop, as a supplier of vibration isolation optical platforms and accessory products, offers a variety of specifications and configurations of vibration isolation platform products to meet the diverse needs of vibration isolation control in life science laboratories.

5、 Summary

Laboratory vibration isolation control plays a crucial role in precision testing scenarios such as electron microscopy, optical experiments, semiconductor testing, and life sciences. The requirements for vibration isolation performance vary in different application scenarios, but the core goal is to effectively isolate environmental vibrations to ensure the measurement accuracy and operational stability of the instrument.

When developing a laboratory vibration isolation control plan, it is necessary to fully understand the isolation requirements of the instruments, environmental vibration conditions, and special requirements, and select appropriate isolation technologies and platform configurations.

Active isolation technology is suitable for ultra precision instruments and low-frequency vibration environments, while passive isolation technology is suitable for general precision requirements and stable vibration environments. Choosing a professional vibration isolation platform supplier and obtaining full process technical support from requirement analysis to solution implementation is the fundamental guarantee for ensuring the effectiveness of laboratory vibration isolation control.
