In optical experimentation and precision manufacturing, optical platforms are the foundational equipment that carries precision instruments. The core value of an optical platform lies in its vibration isolation performance. Faced with the two major technical routes of active vibration isolation and passive vibration isolation on the market, many users are often confused: what is the difference between active and passive vibration isolation, and which solution is more suitable for their application scenarios? This article will explore the active vs passive vibration isolation difference from the perspective of optical platforms, providing a practical guide for optical platform selection.
Active vibration isolation optical platforms are intelligent isolation systems that integrate sensors, controllers, and actuators on the basis of traditional isolation platforms. They can sense environmental vibrations in real time and generate counter-compensation forces within milliseconds, minimizing vibration effects to the lowest level. The emergence of active isolation technology has made it possible to conduct optical experiments with nanometer-level precision in ordinary laboratory environments.

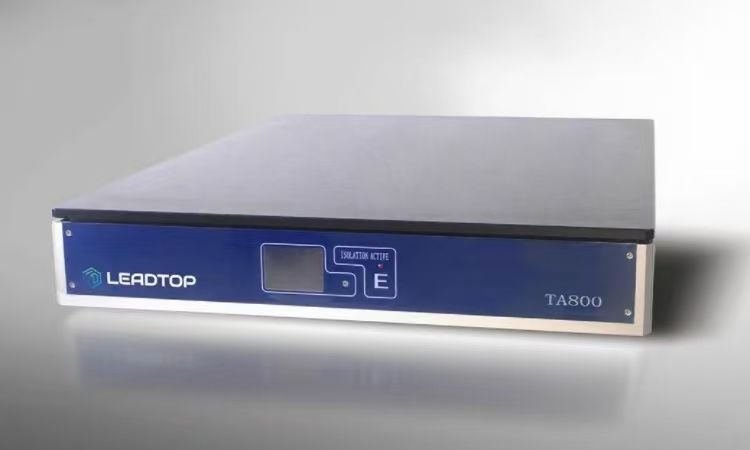

The TA800 table-top active vibration isolation platform is an outstanding representative of active isolation optical platforms. This product employs active damping matrix and passive isolation layer composite technology, achieving six-degree-of-freedom vibration suppression across a wide frequency band of 1-200Hz with a load capacity of 200kg. Its isolation efficiency exceeds 90% at 5Hz and 95% at 10Hz. The compact aviation aluminum body fits various laboratory spaces, the fully automatic height adjustment completes dynamic leveling within 30 seconds, and the 10-20ms response speed ensures real-time and precise vibration suppression. The TA800 is widely used in wafer inspection, femtosecond laser systems, quantum technology, and other ultra-precision equipment fields.
Passive vibration isolation optical platforms rely on the material properties and structural design of isolation components to absorb and attenuate vibration energy. Common passive isolation methods include composite rubber isolation, spring isolation, and pneumatic isolation. Passive isolation platforms do not require external power supply or electronic control systems. They can be used immediately after installation, have extremely low maintenance costs, and can last for decades.

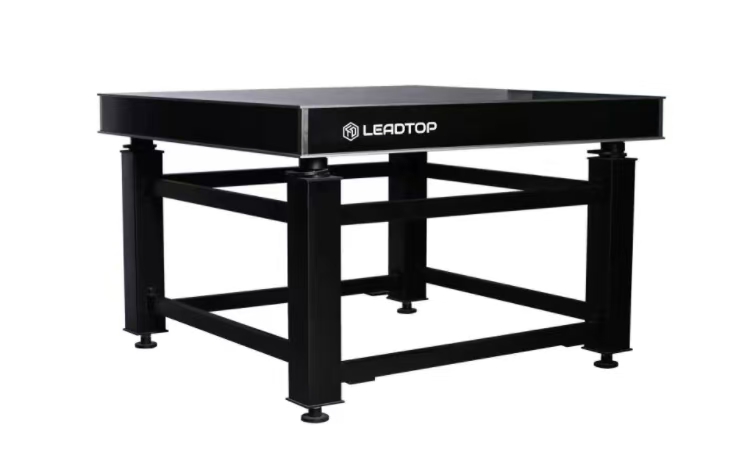

The POT-P series solid-state isolation optical platform is an excellent representative of passive isolation technology. This product line features broadband damping structure tables, with optional honeycomb or superconducting magnetic isolation materials, paired with shear-type multi-layer composite rubber isolation structures that effectively suppress surface resonance. The platform height is 800mm with manual leveling support and an adjustment range of plus or minus 10mm, vertical and horizontal natural frequencies of 6.5-12Hz, table flatness of 0.05-0.1mm per square meter, and a matte surface finish with roughness of 0.8-1.6 micrometers. Its robust structure and minimal maintenance make it suitable for microscopes, medical and biological equipment, and optical path testing applications where vibration requirements are relatively moderate.
Understanding the active vs passive vibration isolation difference is crucial in the optical platform selection process. First, you need to evaluate the vibration sensitivity of your equipment. For nanometer-level precision optical experimental equipment such as interferometers and femtosecond laser systems, active isolation platforms are essential. For micrometer-level precision conventional optical experiments such as standard microscopes and optical path setup, passive isolation platforms are sufficient. Second, consider the environmental vibration conditions of your laboratory. If the laboratory is located in a traffic-heavy area or industrial zone where low-frequency vibration is more severe, active isolation solutions can better leverage their low-frequency isolation advantages. Third, consider budget and operational costs. Active isolation platforms, due to their integrated precision electronic systems, have higher procurement and maintenance costs than passive isolation platforms.
As a professional supplier of vibration isolation optical platforms and accessories, LeadTop deeply understands the pain points of different customers in optical platform selection. Whether you need six-degree-of-freedom active isolation for ultra-precision experiments or pursue cost-effective conventional optical platform solutions, LeadTop can provide comprehensive technical support from product selection and solution design to installation and commissioning.
The vibration isolation performance of optical platforms directly determines the quality of precision experiments and manufacturing. The core of the active vs passive vibration isolation difference is this: active isolation provides outstanding isolation effects in the low-frequency range of 1-200Hz through intelligent real-time compensation mechanisms, making it suitable for ultra-precision equipment; passive isolation attenuates vibration energy through material physical properties, performing excellently in the mid-to-high frequency range, making it suitable for conventional precision equipment, with advantages of simple structure, maintenance-free operation, and low cost. Users should fully understand the active vs passive vibration isolation difference when selecting, and make comprehensive judgments based on equipment precision requirements, environmental vibration conditions, and budget. Choosing a professional vibration isolation optical platform and accessories supplier like LeadTop can provide more accurate selection advice and more reliable product quality assurance.
